High Shear Mixing Systems
ALFATECH’s High quality and efficient Laboratory High Shear Mixer designed for research and development processes which reducing the size of agglomerates and droplets in fine dispersions and emulsions to create scalable, highly repeatable products.
Explore our products
Products
How does work?

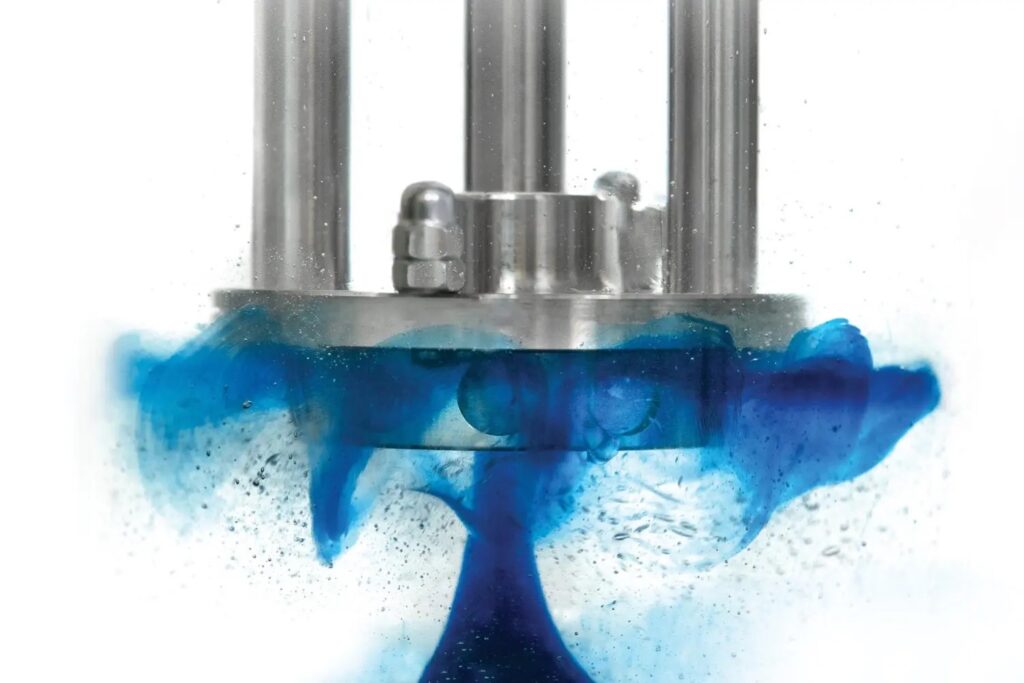

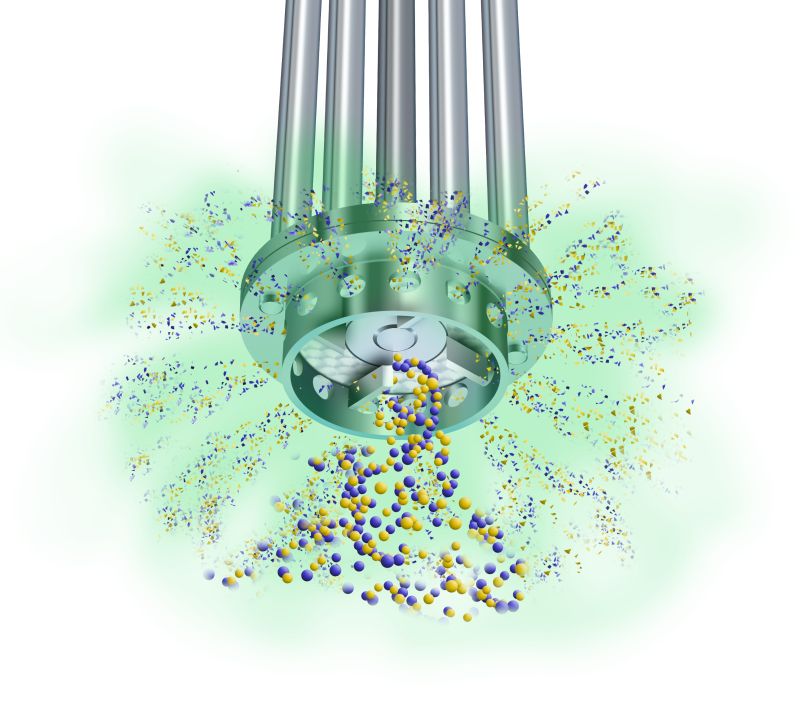

The Laboratory High Shear Mixer design consists of a single stage rotor that turns at high speed within a stationary stator. With rotating blades products pass each opening in the stator, they mechanically shear particles and droplets. Through centrifugal force product dispers at high velocity into the surrounding mix, creating intense hydraulic shear. As fast as product expels, more is drawn into the bottom of the rotor/stator generator which is creates vortex movements which promotes continuous flow and fast mixing.
- IP54/Exproof motor&design
- Variable speed control from 500-3,000 rpm
- Touch screen control and display
- Batch timer and 200°C temperature
- Electronic lift.
- Stainless steel design 316 wetted parts.
- Easy to disassemble and clean.
- Easy use&maintenance
- ATEX certification(on demand)
