A chemical reactor is a process equipment where in chemicals are fed in order to make them chemically react with each other for the purpose of making a desired product. Chemical reactors are designed in such a way to increase the net present value for a given reaction and it is done by ensuring highest efficiency to output the desired product. There are distinct types of reactors intended to face extremely varied operating conditions, both in terms of the nature of the chemical species involved (reactants and products of the reaction) and of the physical conditions under which they operate. Chemical reactor needs to be able to carry out at least three functions: provide the necessary residence time for the reactants to complete the chemical reaction, provide the necessary heat exchange, place the phases into intimate contact to facilitate the reaction.
Design and manufacture according to international standards
High quality and long life guarantee
AISI 304, 316, 316L quality and certified stainless steel material

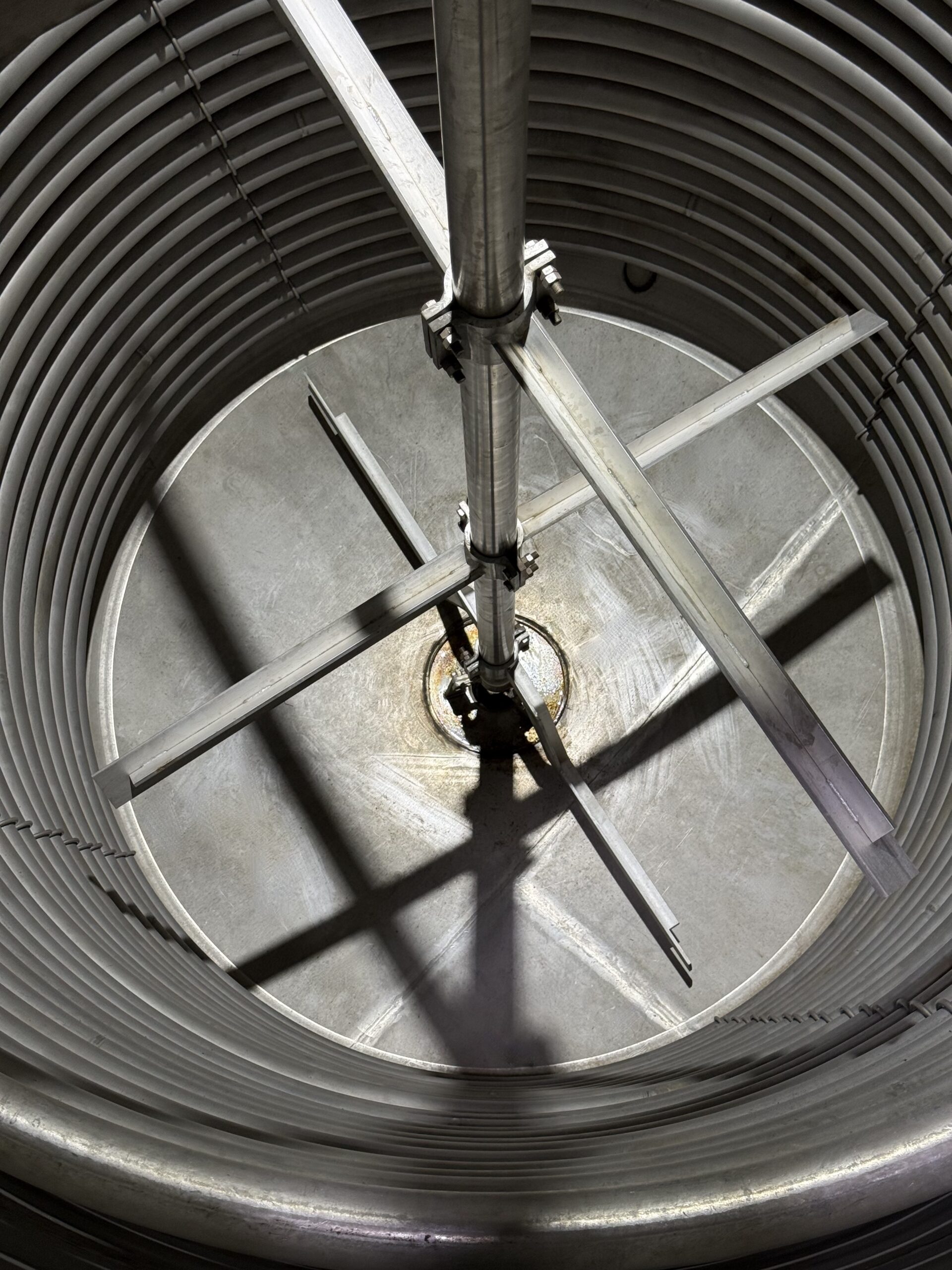

Jakets or half-pipe cails on the outside body, heating and cooling with coiled coil on the inside
-1,6 bar pressure and 300^C temperature resistance
Precise weighing with loadcell
Sealing with soft seal or mechanical seal
Gear unit drive IP56 (Exproof) motor
Product-specific mixing blades, wave breaking
Reactor Properties
- Design and manufacture according to international standards such as EN13455, API
- High quality and long life guarantee
- AISI 304, 316, 316L quality and certified stainless steel material
- Jakets or half-pipe cails on the outside body, heating and cooling with coiled coil on the inside
- -1,6 bar pressure and 300^C temperature resistance
- Precise weighing with loadcell
- Sealing with soft seal or mechanical seal
- Gear unit drive IP56 (Exproof) motor
- Product-specific mixing blades, wave breaking
